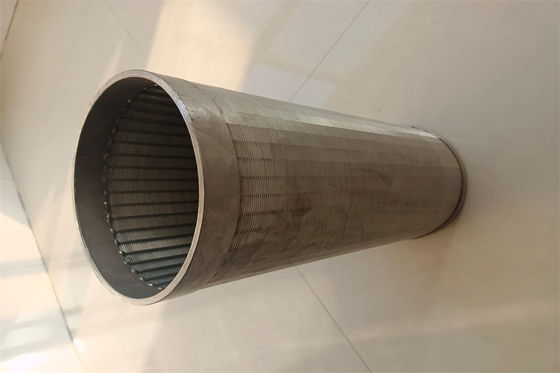

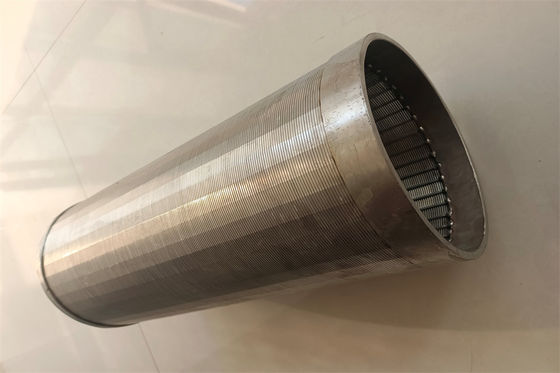

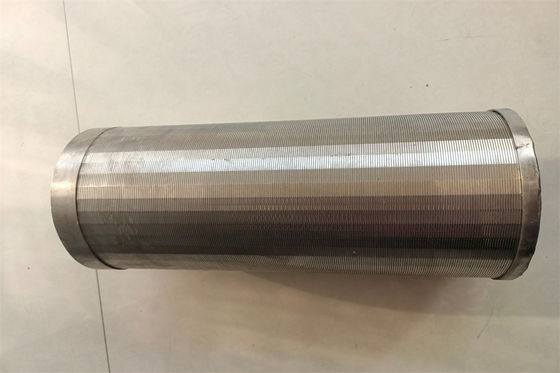

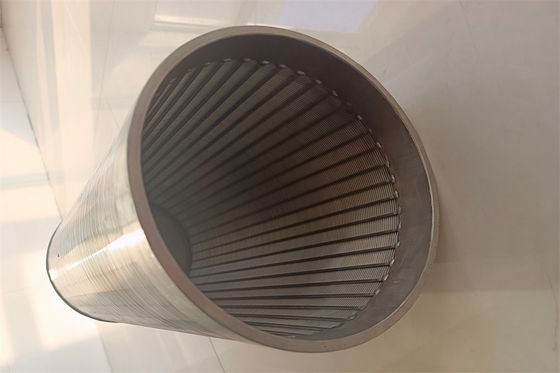

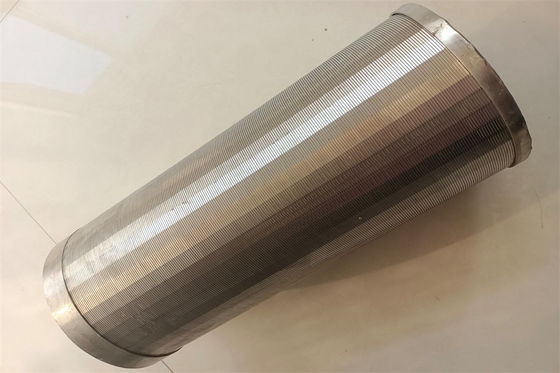

Productdetails:
|
naam: | Profieldraadscherm, SS 304 Vee Draadfilterbuis, Draadgewikkelde schermpijp | Materiaal: | Anti-corrosie waterput zandfilter scherm, roestvrij staal wedge draad scherm buis |
---|---|---|---|
Wijndraad: | 2.5x4mm, 3x4.6mm | Buitendeursdiameter: | 159 mm, 168 mm, of op maat |

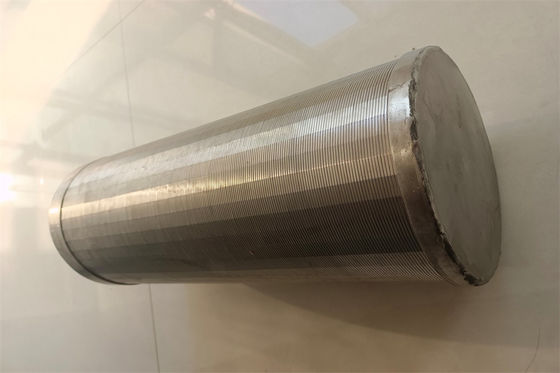

Eindverbinding: | gesoldeerde ring en cover blind plaat | Gap: | 0.25mm |
Voordeel: | geen magnetische, gemakkelijk te installeren, lange levensduur | Toepassing: | Filter, filter, mineraal, gas/olie/vloeistoffiltratie, industrie |
Markeren: | Het anticorrosieve Scherm van de Roestvrij staalfilter,Het de Filterscherm van het zandroestvrije staal,Anticorrosieve het Schermbuis van de Wigdraad |
Regelmatige specificatie vanAnti-corrosie waterput zandfilter, Slijmdraad schermbuis
afmetingen (inch) |
Overdosis (mm) |
slot (mm) |
Lange (m) |
Tenslile sterkte |
instorting Sterkte |
wikkeldraad (Breedte x hoogte:mm) |
steunstaaf Ronde draad (mm) |
3 1/2 | 88.9 | 1 | 2.9 | > 22 | 10.2 | 2.3x3.5 | 3.0MMx22 |
4 1/2 | 114.3 | 1 | 2.9 | > 28 | 11.5 | 2.3x3.5 | 3.0MM × 22 |
6-5/8 | 168.3 | 0.75 | 5.8 | > 40 | 12.8 | 2.3x3.5 | 3.8mm×32 |
6-5/8 | 168.3 | 1 | 5.8 | >33 | 12.8 | 2.3x3.5 | 3.8mm×32 |
6-5/8 | 168.3 | 0.63 | 5.8 | > 83 | 45 | 3.0x6.0 | 5.OMM×32 |
8-5/8 | 219.1 | 1 | 5.8 | > 34 | 21.9 | 2.3x3.5 | 3.8mmx48 |
8-5/8 | 219.1 | 1 | 5.8 | > 50 | 38.2 | 3.0x4.6 | 4.0MMx48 |
8-5/8 | 219.1 | 1 | 5.8 | > 60 | 46 | 3.05x6.35 | 5.0MMx48 |
10-3/4 | 273.1 | 0.75 | 5.8 | > 50 | 9 | 2.5xVier.0 | 3.8mm×55 |
10-3/4 | 273.1 | 1 | 5.8 | > 60 | 39.5 | 3.0x4.6 | 4.5MMx55 |
10-3/4 | 273.1 | 1 | 5.8 | > 100 | 48 | 3.2x6.0 | 5.0MM×55 |
12-3/4 | 323.9 | 1 | 5.8 | > 120 | 37.2 | 3.0x6.0 | 4.0MMx56 |
14 | 355.6 | 1 | 2.9 | > 80 | 37.8 | 3.0x5.0 | 4.0MMx59 |
16 | 426 | 1 | 2.9 | > 80 | 37.5 | 3.0 x 5.0 | 4.OMM×64 |
Profieldraad | ||||||||
Breedte ((mm) | 1.00 | 1.50 | 1.50 | 2.00 | 2.30 | 2.50 | 3.00 | 3.05 |
Hoogte ((mm) | 2.00 | 2.00 | 2.50 | 3.80 | 3.50 | 4.00 | 4.60 | 6.35 |
Ondersteuningsstaaf | ![]() Ronde |
|||||
Breedte ((mm) | 1.80 | 2.00 | 2.50 | 3.00 | 3.00 | Ø2,5-Ø6 mm |
Hoogte ((mm) | 2.50 | 3.00 | 4.00 | 4.60 | 6.00 | - Ik heb het niet. |
